Part#: B302

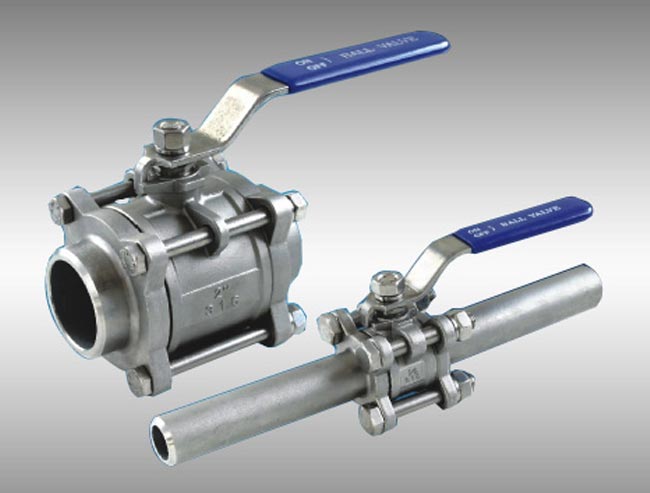

Product Name: 3-PC Butt Weld Ball Valve
Material: SS 304, SS 316
Coonection: Thread
Medium: Water, Oil & Gas
FEATURES:
Working Pressure: 1000PSI/PN63
Full Port
Investment Casting
Blow-out Proof Stem
Locking Device Handle(Option)
PED97/23/EC(CE0035)Approved
Casting Approved AD2000-W0
Butt Weld: ASME B16.25(SCH40)
Inspection Testing: API598, EN12266

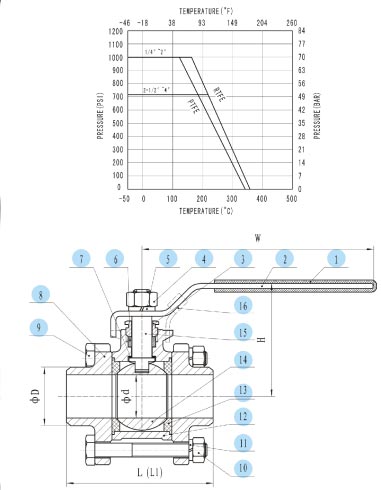

| DIMENSION TABLE | |||||||||||
| SIZE ITEM | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1 1/4" | 1 1/2" | 2" | 2 1/2" | 3" | 4" |
| d | 11.2 | 11.2 | 15 | 20 | 25 | 32 | 38 | 50 | 65 | 76 | 94 |
| D | 15.2 | 17.2 | 21.3 | 26.9 | 34.5 | 43.5 | 50 | 61.5 | 77 | 90 | 115 |
| H | 52 | 52 | 53 | 64 | 77 | 82 | 94 | 102 | 116 | 125 | 159 |
| W | 105 | 105 | 105 | 126 | 144 | 144 | 189 | 189 | 224 | 224 | 251 |
| L1 | 225 | 225 | 225 | 225 | 245 | 256 | 260 | 275 | 334 | 345 | 365 |
| L | 62 | 62 | 63 | 78 | 86 | 97 | 112 | 134 | 170 | 189 | 242 |
| MATERIAL LIST | ||||||||||
| ITEM | DESCRIPTION | MATERIAL | ||||||||
| 1 | HANDLE SLEEVE | PLASTIC | ||||||||
| 2 | HANDLE | SUS304 | ||||||||
| 3 | GLAND NUT | SUS304 | ||||||||
| 4 | STEM NUT | SUS304 | ||||||||
| 5 | SPRING WASHER | SUS304 | ||||||||
| 6 | PACKING | PTFE | ||||||||
| 7 | STEM SEAL | PTFE | ||||||||
| 8 | CAP | CF8/CF8M | ||||||||
| 9 | BOLT | SUS304 | ||||||||
| 10 | NUT | SUS304 | ||||||||
| 11 | THRUST WASHER | SUS304 | ||||||||
| 12 | BODY | CF8/CF8M | ||||||||
| 13 | BALL SEAT | RPTFE | ||||||||
| 14 | BALL | CF8/CF8M | ||||||||
| 15 | STEM | SUS304 | ||||||||
| 16 | LOCKING | SUS304 | ||||||||
