Part#: B404A

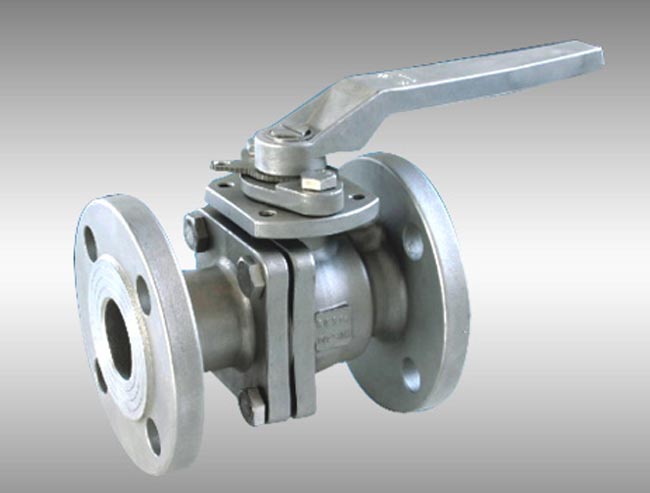

Product Name: 2-PC Flanged Ball Valve(ANSI)
Material: SS 304, SS 316
Coonection: Flange
Medium: Water, Oil & Gas
FEATURES:
ANSI CLASS 150
Full Port
Investment Casting
Blow-out Proof Stem
ISO5211 Mounting Pad
PED97/23/EC(CE0035)Approved
Casting Approved AD2000-W0
Design: ASME B16.34
End Flange: ASME B16.5
Inspection Testing: API598

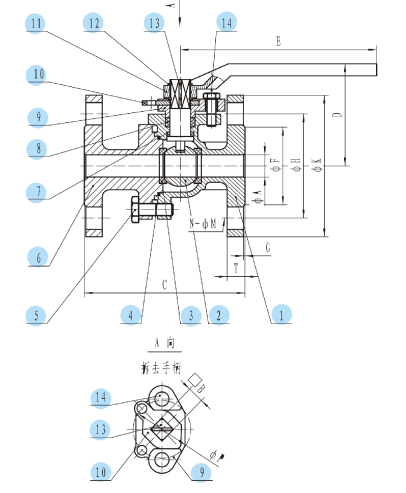

| DIMENSION TABLE | |||||||||||
| SIZE ITEM | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1 1/4" | 1 1/2" | 2" | 2 1/2" | 3" | 4" |
| A | \ | \ | 15 | 20 | 25 | 32 | 38 | 50 | 65 | 76 | 94 |
| B | \ | \ | 11 | 11 | 14 | 14 | 17 | 17 | 17 | 22 | 22 |
| D | \ | \ | 68 | 68 | 86 | 92 | 120 | 131 | 144 | 167 | 186 |
| E | \ | \ | 130 | 130 | 160 | 160 | 200 | 200 | 200 | 325 | 325 |
| P | \ | \ | 42 | 42 | 50 | 50 | 70 | 70 | 102 | 102 | 102 |
| F | \ | \ | 35 | 43 | 51 | 64 | 73 | 92 | 105 | 127 | 157 |
| H | \ | \ | 60.5 | 70 | 79.5 | 89 | 98.5 | 120.5 | 139,5 | 152.5 | 190.5 |
| K | \ | \ | 89 | 98 | 108 | 117 | 127 | 152 | 178 | 190 | 229 |
| T | \ | \ | 11 | 11 | 12 | 13 | 15 | 16 | 18 | 19 | 24 |
| G | \ | \ | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| N | \ | \ | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
| M | \ | \ | 15 | 15 | 15 | 15 | 15 | 19 | 19 | 19 | 19 |
| C | \ | \ | 108 | 117 | 127 | 140 | 165 | 178 | 190 | 203 | 229 |
| MATERIAL LIST | ||||||||||
| ITEM | DESCRIPTION | MATERIAL | ||||||||
| 1 | BODY | CF8/CF8M | ||||||||
| 2 | BALL | CF8/CF8M | ||||||||
| 3 | BALL SEAT | RPTFE | ||||||||
| 4 | BODY SEAL | PTFE | ||||||||
| 5 | BOLT | SUS304 | ||||||||
| 6 | CAP | CF8/CF8M | ||||||||
| 7 | STEM SEAL | PTFE | ||||||||
| 8 | STEM PACKING | PTFE | ||||||||
| 9 | GLAND | CF8 | ||||||||
| 10 | STOPPER | SUS304 | ||||||||
| 11 | HANDLE | CF8 | ||||||||
| 12 | SNAP RING | SUS304 | ||||||||
| 13 | STEM | SUS304 | ||||||||
| 14 | BOLT | SUS304 | ||||||||
