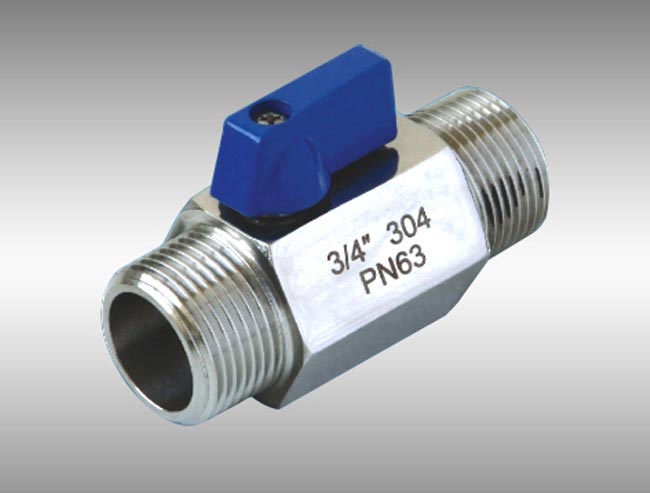

Part#: B121S
Product Name: MINI Ball Valve-M/M
Material: SS 304, SS 316
Coonection: Thread
Medium: Water, Oil & Gas
FEATURES:
Working Pressure: 1000PSI/PN63
Reduce Port
Investment Casting
Blow-out Proof Stem
Sanitary Design
PED97/23/EC(CE0035)Approved
Casting Approved AD2000-W0
Thread: NPT, BSPT, DIN2999/259, ISO228-1
Inspection Testing: API598, EN12266<

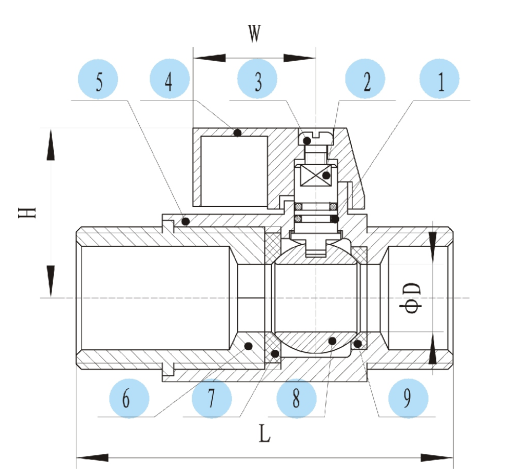

| DIMENSION TABLE | |||||
| SIZE ITEM | 1/4" | 3/8" | 1/2" | 3/4" | 1" |
| D | 7 | 7 | 9.2 | 12.5 | 15 |
| H | 26.5 | 26.5 | 28.3 | 31.5 | 34 |
| W | 22.8 | 22.8 | 22.8 | 22.8 | 22.8 |
| L | 50 | 50 | 58 | 71.5 | 83 |
| MATERIAL LIST | ||||||||||
| ITEM | DESCRIPTION | MATERIAL | ||||||||
| 1 | O-RING | NBR | ||||||||
| 2 | STEM | SUS304 | ||||||||
| 3 | BOLT | SUS304 | ||||||||
| 4 | LEVER | ALUMINUM ALLOY | ||||||||
| 5 | BODY | CF8/CF8M | ||||||||
| 6 | CAP | CF8/CF8M | ||||||||
| 7 | BALL SEAT(A) | RPTFE | ||||||||
| 8 | BALL | CF8/CF8M | ||||||||
| 9 | BALL SEAT(B) | RPTFE | ||||||||
