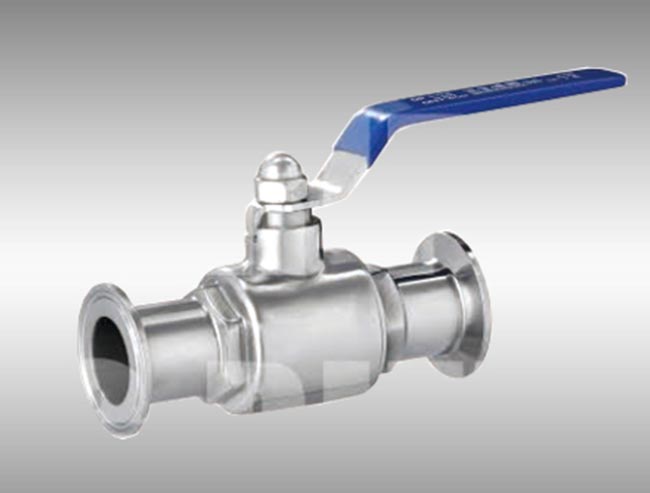

Product Name:3A Manual Quick-install/Welded Direct Way Ball Valve

Applications:

Pharmacy and Biotechnology Industries.

FEATURES:

Valve Body combined with clamp connection.

Easily disassemble without special tools.

Small operating torque.

With cleaning and drainage port.

Gasket complies with PTFE FDA 177.2600

Connection: Clamp, Weld, Thread

Size: 1/2"-4"/ DIN25-DIN100

Standard: 3A, DIN, SMS, IDF, RJT, BPE, ISO

Valve body can be replaced in any connections, and the length will be not changed.

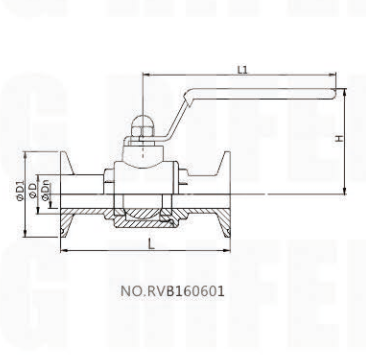

3A MANUAL QUICK-INSTALL/WELDED DIRECT WAY BALL VALVE
DIMENSION TABLE
SIZE	ΦDn	ΦD	ΦD1	L	L1	H
1/2"	9.4	12.7	25.2	75	111	60
3/4"	15.8	19.1	25.2	100	114	62
1"	22.1	25.4	50.5	120	140	65
1.25"	28.5	31.8	50.5	130	140	72
1.5"	34.8	38.1	50.5	130	140	72
2"	47.5	50.8	64	164	175	94
2.5"	60.2	63.5	77.5	189	230	104
3"	72.9	76.2	91	212	246	116
4"	97.4	101.6	119	260	333	151

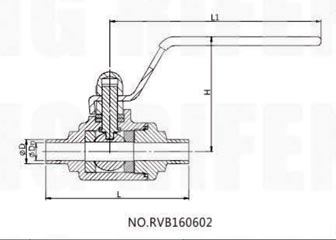

DIN MANUAL QUICK-INSTALL/WELDED DIRECT WAY BALL VALVE
DIMENSION TABLE
SIZE	ΦDn	ΦD	ΦD1	L	L1	H
DIN15	15	18	34	75	111	60
DIN20	19	22	34	100	114	62
DIN25	25	28	50.5	120	140	65
DIN32	31	34	50.5	130	140	72
DIN40	37	40	50.5	140	160	79
DIN50	49	52	64	164	175	94
DIN65	66	70	91	189	230	104
DIN80	81	85	106	212	246	116
DIN100	100	104	119	260	333	151

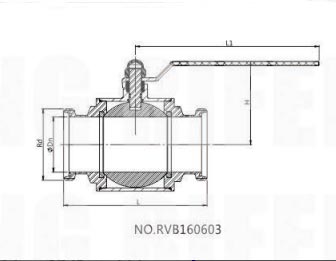

DIN MANUAL THREAD DIRECT WAY BALL VALVE
DIMENSION TABLE
SIZE	ΦDn	Rd	L	L1	H
DIN15	15	18	75	111	60
DIN20	19	22	100	114	62
DIN25	25	28	120	140	65
DIN32	31	34	130	140	72
DIN40	37	40	140	160	79
DIN50	49	52	164	175	94
DIN65	66	70	189	230	104
DIN80	81	85	212	246	116
DIN100	100	104	260	333	151
