Part#: B201

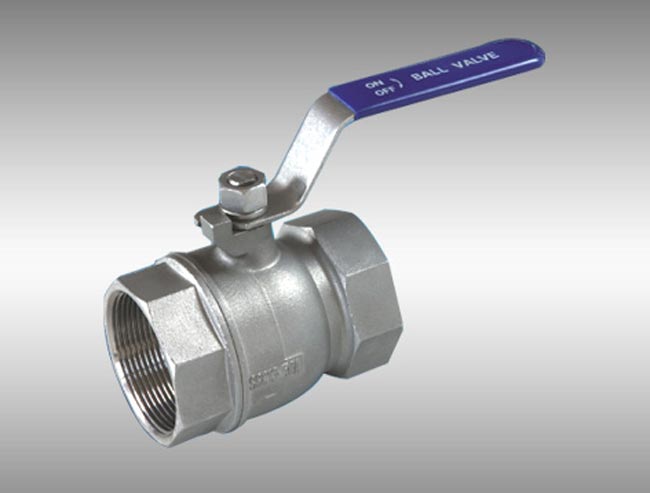

Product Name: 2-PC Reduce Ball Valve
Material: SS 304, SS 316
Coonection: Thread
Medium: Water, Oil & Gas
FEATURES:
Working Pressure: 1000PSI/PN63
Reduce Port
Investment Casting
Blow-out Proof Stem
PED97/23/EC(CE0035)Approved
Casting Approved AD2000-W0
Thread: NPT, BSPT, DIN2999/259, ISO228-1
Inspection Testing: API598, EN12266

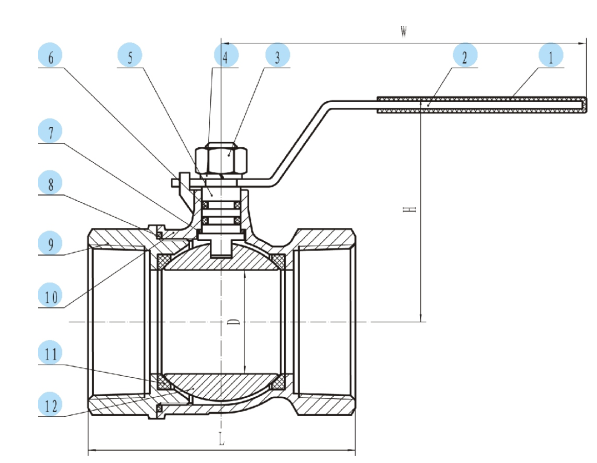

| DIMENSION TABLE | ||||||||||
| SIZE ITEM | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1 1/4" | 1 1/2" | 2" | 2 1/2" | 3" |
| D | 10 | 10 | 10 | 15 | 20 | 25 | 32 | 40 | 50 | 65 |
| H | 50 | 50 | 50 | 55 | 62 | 67 | 81 | 86 | 105 | 118 |
| W | 95 | 95 | 95 | 95 | 113 | 113 | 141 | 141 | 167 | 200 |
| L | 52 | 52 | 52 | 58 | 66 | 79 | 89.5 | 102 | 132 | 154 |
| MATERIAL LIST | ||||||||||
| ITEM | DESCRIPTION | MATERIAL | ||||||||
| 1 | PLASTIC COVER | PLASTIC | ||||||||
| 2 | HANDLE | SUS304 | ||||||||
| 3 | STEM NUT | SUS304 | ||||||||
| 4 | THRUST WASHER | SUS304 | ||||||||
| 5 | STEM | SUS304 | ||||||||
| 6 | O-RING | NBR | ||||||||
| 7 | STEM SEAL | PTFE | ||||||||
| 8 | BODY SEAL | PTFE | ||||||||
| 9 | CAP | CF8/CF8M | ||||||||
| 10 | BODY | CF8/CF8M | ||||||||
| 11 | SEAT | RPTFE | ||||||||
| 12 | BALL | CF8/CF8M | ||||||||
