Part#: B201M

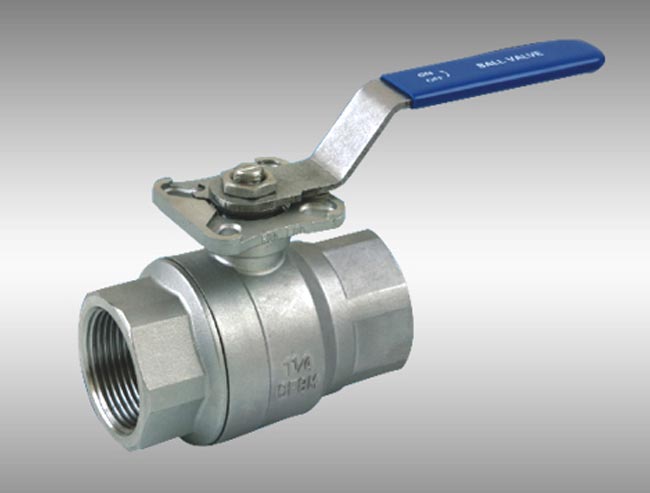

Product Name: 2-PC Ball Valve With Mounting Pad
Material: SS 304, SS 316
Coonection: Thread
Medium: Water, Oil & Gas
FEATURES:
Working Pressure: 1000PSI/PN63
Full Port
Investment Casting
ISO5211 Mounting Pad
Blow-out Proof Stem
Locking Device Handle
Fire Safe: API607
Anti-Static Devices
PED97/23/EC(CE0035)Approved
Casting Approved AD2000-W0
Thread: NPT, BSPT, DIN2999/259, ISO228-1
Inspection Testing: API598, EN12266

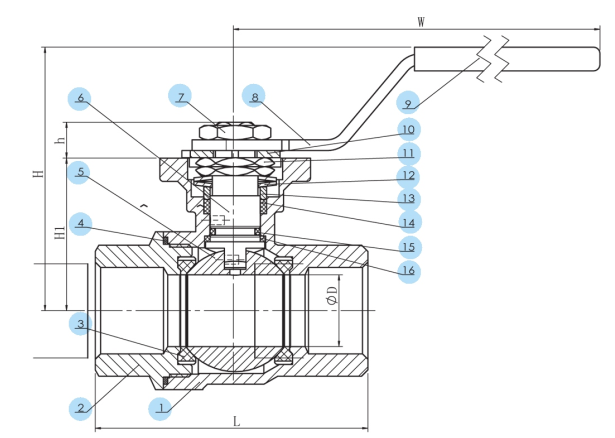

| DIMENSION TABLE | ||||||||||
| SIZE ITEM | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1 1/4" | 1 1/2" | 2" | 2 1/2" | 3" |
| φD | 11 | 12.5 | 15 | 20 | 25 | 32 | 38 | 50 | \ | \ |
| H | 60.5 | 60.5 | 63 | 73.5 | 76 | 82.5 | 94 | 103 | \ | \ |
| H1 | 36.5 | 36.5 | 37.8 | 42.5 | 45 | 51.5 | 59.5 | 68.5 | \ | \ |
| h | 7 | 7 | 7 | 9 | 9 | 9 | 11 | 11 | \ | \ |
| W | 100 | 100 | 100 | 137 | 137 | 137 | 205 | 205 | \ | \ |
| φd | 36 | 36 | 36 | 36 | 42 | 42 | 50 | 50 | \ | \ |
| Φb | 42 | 42 | 42 | 42 | 50 | 50 | 70 | 70 | \ | \ |
| F | 9 | 9 | 9 | 9 | 9 | 9 | 11 | 11 | \ | \ |
| L | 50 | 50 | 55 | 76 | 83 | 100 | 103 | 136 | \ | \ |
| MATERIAL LIST | ||||||||||
| ITEM | DESCRIPTION | MATERIAL | ||||||||
| 1 | BODY | CF8/CF8M | ||||||||
| 2 | CAP | CF8/CF8M | ||||||||
| 3 | SET | RPTFE | ||||||||
| 4 | BODY SEAL | PTFE | ||||||||
| 5 | BALL | CF8/CF8M | ||||||||
| 6 | STEM | SUS304 | ||||||||
| 7 | STEM NUT | SUS304 | ||||||||
| 8 | HANDLE | SUS304 | ||||||||
| 9 | PLASTIC COVER | PLASTIC | ||||||||
| 10 | WASHER | SUS304 | ||||||||
| 11 | STEM NUT | SUS304 | ||||||||
| 12 | SPRING WASHER | SUS301 | ||||||||
| 13 | GLAND RING | SUS304 | ||||||||
| 14 | STEM PACKING | PTFE | ||||||||
| 15 | O-RING | NBR | ||||||||
| 16 | THRUST WASHER | PTFE | ||||||||
