Part#: C201

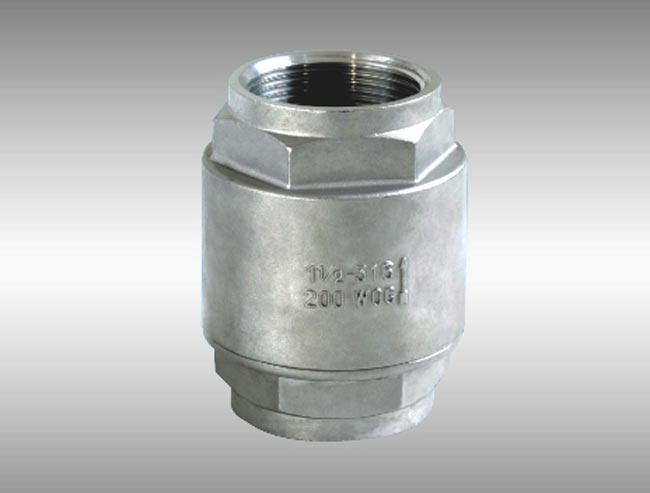

Product Name: 2-PC Spring Vertical Check Valve
Material: SS 304, SS 316
Coonection: Thread
Medium: Water, Oil & Gas
FEATURES:
Working Pressure: 200PSI/PN16
Investment Casting
PED97/23/EC(CE0035)Approved
Casting Approved AD2000-W0
Thread: NPT, BSPT, DIN2999/259, ISO228-1
Inspection Testing: API598, EN12266

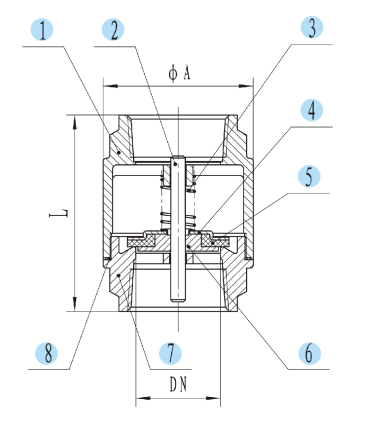

| DIMENSION TABLE | |||||||||||
| SIZE ITEM | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1 1/4" | 1 1/2" | 2" | 2 1/2" | 3" | 4" |
| DN | \ | 13 | 15 | 20 | 25 | 31 | 40 | 50 | 65 | 76 | 94 |
| ∅A | \ | 30 | 34.5 | 41.5 | 48 | 60.5 | 71 | 87 | 110 | 125 | 155 |
| L | \ | 54 | 57 | 64 | 75 | 82 | 93 | 100 | 120 | 140 | 158 |
| MATERIAL LIST | ||||||||||
| ITEM | DESCRIPTION | MATERIAL | ||||||||
| 1 | BODY | CF8/CF8M | ||||||||
| 2 | STEM | SUS304/SUS316 | ||||||||
| 3 | SPRING | SUS304/SUS316 | ||||||||
| 4 | STOCK | SUS304/SUS316 | ||||||||
| 5 | SEAT | NBR/VITON | ||||||||
| 6 | PRESS CAP | SUS304/SUS316 | ||||||||
| 7 | CAP | CF8/CF8M | ||||||||
| 8 | BODY PACKING | PTFE | ||||||||
