Part#: C301

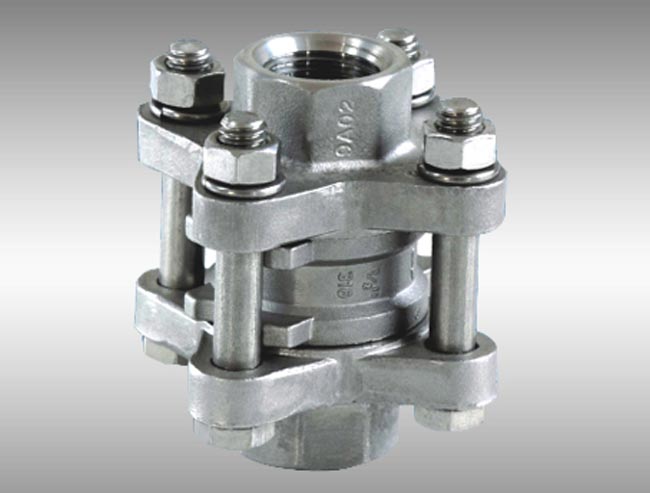

Product Name: 3 PC-Spring Vertical Check Valve
Material: SS 304, SS 316
Coonection: Thread
Medium: Water, Oil & Gas
FEATURES:
Working Pressure: 1000PSI/PN63
Investment Casting
Precise Grinding
PED97/23/EC(CE0035)Approved
Casting Approved AD2000-W0
Thread: NPT, BSPT, DIN2999/259, ISO228-1
Inspection Testing: API598, EN12266

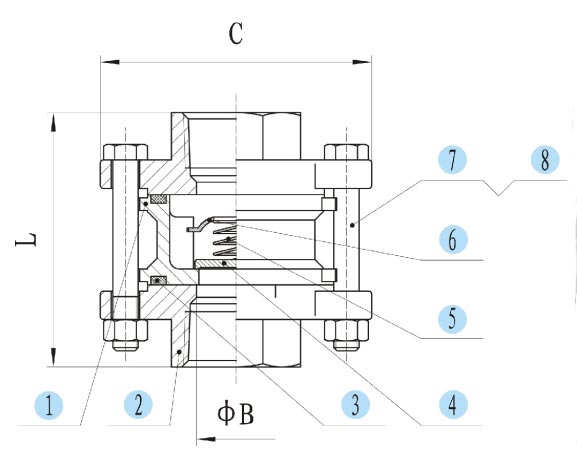

| DIMENSION TABLE | |||||||||||
| SIZE ITEM | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1 1/4" | 1 1/2" | 2" | 2 1/2" | 3" | 4" |
| B | 8 | 10 | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 |
| C | 48 | 48 | 57 | 67 | 78 | 95.5 | 106 | 124 | 164 | 184 | 235 |
| L | 61 | 61 | 69 | 74 | 80 | 95 | 101 | 114 | 136 | 146 | 174 |
| MATERIAL LIST | ||||||||||
| ITEM | DESCRIPTION | MATERIAL | ||||||||
| 1 | BODY | CF8/CF8M | ||||||||
| 2 | CAP | CF8/CF8M | ||||||||
| 3 | SEAL PACKING | PTFE | ||||||||
| 4 | DISC | SUS304/SUS316 | ||||||||
| 5 | SPRING | SUS304/SUS316 | ||||||||
| 6 | STOPPER | SUS304/SUS316 | ||||||||
| 7 | BOLT | SUS304 | ||||||||
| 8 | NUT | SUS304 | ||||||||
