Part#: C601

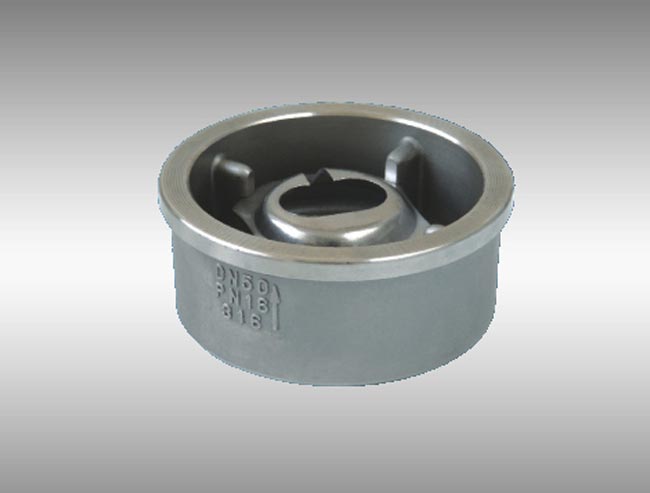

Product Name: Disk Check Valve
Material: SS 304, SS 316
Medium: Water, Oil & Gas
FEATURES:
Working Pressure: 200PSI/PN16
Investment Casting
Precise Grinding
PED97/23/EC(CE0035)Approved
Casting Approved AD2000-W0
Inspection Testing: API598, EN12266

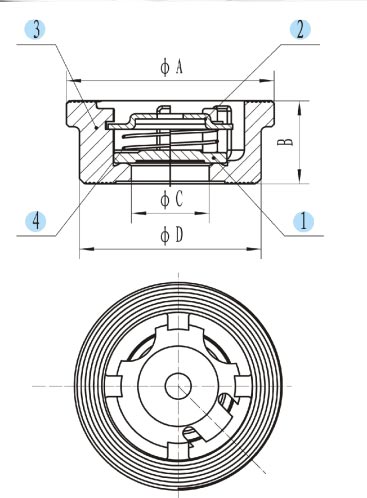

| DIMENSION TABLE | |||||||||
| SIZE ITEM | DN15 | DN20 | DN25 | DN32 | DN40 | DN50 | DN65 | DN80 | DN100 |
| A | 40 | 47 | 56 | 72 | 82 | 95 | 115 | 132 | 152 |
| B | 16 | 19 | 21 | 28 | 32 | 40 | 46 | 50 | 60 |
| C | 15 | 20 | 25 | 31 | 39 | 48 | 63 | 75 | 88 |
| D | 35 | 42 | 50 | 64 | 76 | 89 | 108 | 124 | 145 |
| MATERIAL LIST | ||||||||||
| ITEM | DESCRIPTION | MATERIAL | ||||||||
| 1 | DISC | SUS304/SUS316 | ||||||||
| 2 | STOPPER | SUS304/SUS316 | ||||||||
| 3 | BODY | CF8/CF8M | ||||||||
| 4 | SPRING | SUS304/SUS316 | ||||||||
