Part#: C401

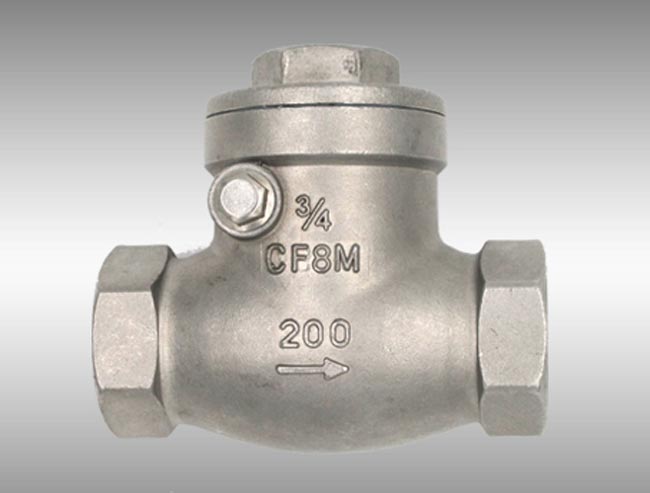

Product Name: Swing Check Valve
Material: SS 304, SS 316
Coonection: Thread
Medium: Water, Oil & Gas
FEATURES:
Working Pressure: 200PSI/PN16
Investment Casting
Precise Grinding
PED97/23/EC(CE0035)Approved
Casting Approved AD2000-W0
Thread: NPT, BSPT, DIN2999/259, ISO228-1
Inspection Testing: API598, EN12266
| DIMENSION TABLE | ||||||||||
| SIZE ITEM | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1 1/4" | 1 1/2" | 2" | 2 1/2" | 3" |
| B | \ | \ | 15 | 20 | 25 | 32 | 38 | 50 | 62 | 75 |
| H | \ | \ | 41 | 53 | 60 | 60 | 75 | 79 | 90 | 100 |
| L | \ | \ | 65 | 80 | 90 | 105 | 120 | 140 | 156 | 188 |
| MATERIAL LIST | ||||||||||
| ITEM | DESCRIPTION | MATERIAL | ||||||||
| 1 | BODY | CF8/CF8M | ||||||||
| 2 | CAP | CF8/CF8M | ||||||||
| 3 | SEAL PACKING | PTFE | ||||||||
| 4 | DISC | SUS304/SUS316 | ||||||||
| 5 | SPRING | SUS304/SUS316 | ||||||||
| 6 | STOPPER | SUS304/SUS316 | ||||||||
| 7 | BOLT | SUS304 | ||||||||
| 8 | NUT | SUS304 | ||||||||
