Part#: B404MJ

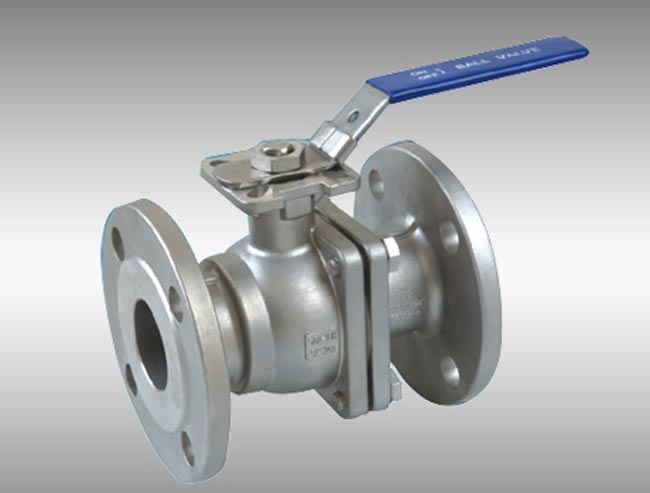

Product Name: 2-PC Flanged Ball Valve With Direct Mounting Pad(JIS)
Material: SS 304, SS 316
Coonection: Flange
Medium: Water, Oil & Gas
FEATURES:
JIS 10K
Full Port
Investment Casting
Blow-out Proof Stem
ISO5211 Mounting Pad
PED97/23/EC(CE0035)Approved
Casting Approved AD2000-W0
Design: JIS B2002
End Flange: JIS B2238
Inspection Testing: JIS B2003, API598

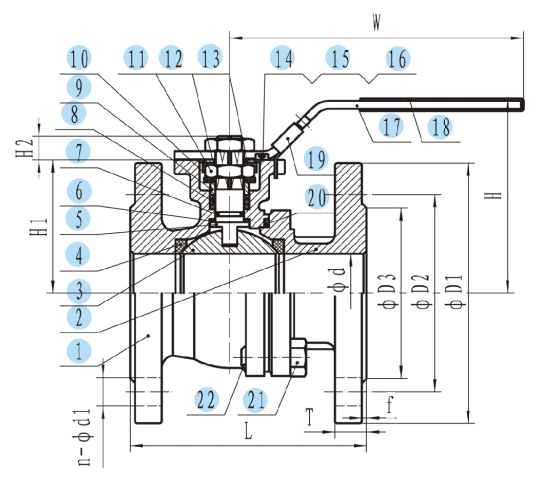

| DIMENSION TABLE | |||||||||
| SIZE | 15A | 20A | 25A | 32A | 40A | 50A | 65A | 80A | 100A |
| φd | 15 | 20 | 25 | 32 | 38 | 50 | 65 | 76 | 100 |
| L | 108 | 117 | 127 | 140 | 165 | 178 | 190 | 203 | 229 |
| T | 12 | 14 | 14 | 16 | 16 | 16 | 18 | 18 | 18 |
| f | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 2 |
| D1 | 95 | 100 | 125 | 135 | 140 | 155 | 175 | 185 | 210 |
| D2 | 70 | 75 | 90 | 100 | 105 | 120 | 140 | 150 | 175 |
| D3 | 51 | 56 | 67 | 76 | 81 | 96 | 116 | 126 | 151 |
| n | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | 8 |
| φd1 | 15 | 15 | 19 | 19 | 19 | 19 | 19 | 19 | 19 |
| H1 | 48 | 53 | 64 | 71 | 76 | 84.5 | 101.5 | 111.5 | 141 |
| H2 | 9 | 9 | 11 | 11 | 14 | 14 | 17 | 17 | 22 |
| H | 80 | 85 | 100 | 108 | 114 | 124 | 148 | 158 | 189 |
| W | 140 | 140 | 160 | 160 | 185 | 185 | 230 | 230 | 320 |
| K | M12X1.5 | M12X1.5 | M14X1.5 | M14X1.5 | M18X1.5 | M18X1.5 | M22X1.5 | M22X1.5 | M28X2 |
| P | 9 | 9 | 11 | 11 | 14 | 14 | 17 | 17 | 22 |
| A1 | 3 | 3 | 3 | 3 | 3.5 | 3.5 | 4.5 | 4.5 | |
| A2 | 3 | 3 | 3.5 | 3.5 | 4.5 | 4.5 | 5.5 | 5.5 | M10 |
| B1 | 36 | 36 | 42 | 42 | 50 | 50 | 70 | 70 | |
| B2 | 42 | 42 | 50 | 50 | 70 | 70 | 102 | 102 | 102 |
| MATERIAL LIST | ||||||||||
| ITEM | DESCRIPTION | MATERIAL | ||||||||
| 1 | BODY | SSC13A/SSC14A | ||||||||
| 2 | CAP | SSC13A/SSC14A | ||||||||
| 3 | BALL | SSC13A/SSC14A | ||||||||
| 4 | BALL SEAT | RPTFE | ||||||||
| 5 | STEM | SUS304 | ||||||||
| 6 | STEM PACKING | PTFE | ||||||||
| 7 | O-RING | NBR | ||||||||
| 8 | V-RING PACKING | PTFE | ||||||||
| 9 | GLAND | SUS304 | ||||||||
| 10 | BELIEVILLE WASHER | SUS301 | ||||||||
| 11 | NUT | SUS304 | ||||||||
| 12 | THRUST WASHER | SUS304 | ||||||||
| 13 | WASHER | SUS304 | ||||||||
| 14 | STOP BOLT | SUS304 | ||||||||
| 15 | NUT | SUS304 | ||||||||
| 16 | WASHER | SUS304 | ||||||||
| 17 | HANDLE | SUS304 | ||||||||
| 18 | PALSTIC COVER | PLASTIC | ||||||||
| 19 | LOCKING | SUS304 | ||||||||
| 20 | BODY GASKET | PTFE | ||||||||
| 21 | NUT | SUS304 | ||||||||
| 22 | BOLT | SUS304 | ||||||||
