Part#: B304D

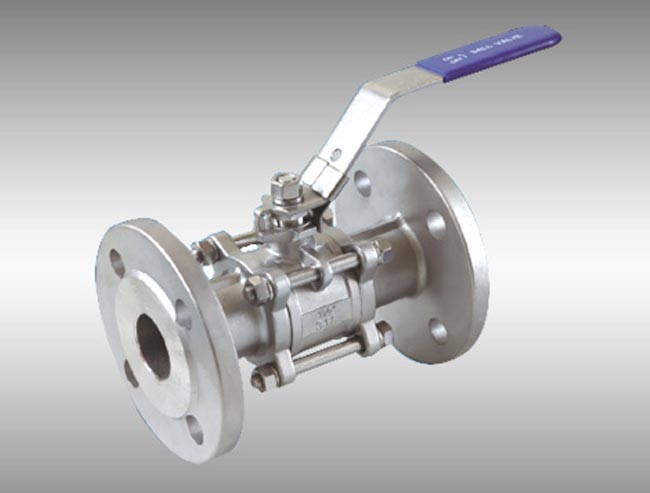

Product Name: 3-PC Flanged Ball Valve(DIN)
Material: SS 304, SS 316
Coonection: Flange
Medium: Water, Oil & Gas
FEATURES:
PN25~40
Full Port
Investment Casting
Blow-out Proof Stem
PED97/23/EC(CE0035)Approved
Casting Approved AD2000-W0
Design: DIN3357,EN12516
End Flange: DIN2501, PN10-40
Face to Face: DIN3202-F1
Inspection Testing: DIN3230/3, EN12266

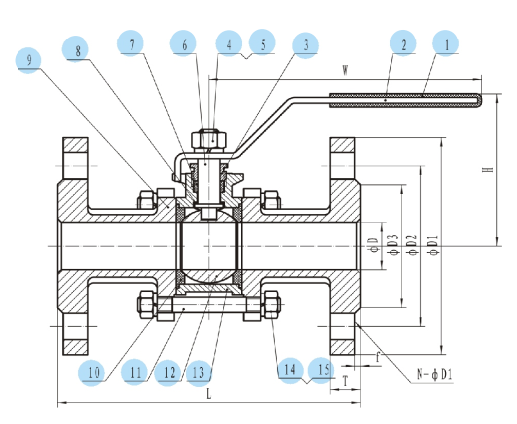

| DIMENSION TABLE | |||||||||||
| SIZE ITEM | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 1 1/4" | 1 1/2" | 2" | 2 1/2" | 3" | 4" |
| D | \ | \ | 15 | 20 | 25 | 32 | 38 | 50 | 65 | 76 | 94 |
| D1 | \ | \ | 95 | 105 | 115 | 140 | 150 | 165 | 185 | 200 | 235 |
| D2 | \ | \ | 65 | 75 | 85 | 100 | 110 | 125 | 145 | 160 | 190 |
| D3 | \ | \ | 45 | 58 | 68 | 78 | 88 | 102 | 122 | 138 | 162 |
| f | \ | \ | 2 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 |
| T | \ | \ | 16 | 18 | 18 | 18 | 18 | 20 | 22 | 24 | 24 |
| N-Φd | \ | \ | 4-Φ14 | 4-Φ14 | 4-Φ14 | 4-Φ18 | 4-Φ18 | 4-Φ18 | 8-Φ18 | 8-Φ18 | 8-Φ22 |
| L | \ | \ | 130 | 150 | 160 | 180 | 200 | 230 | 290 | 310 | 350 |
| W | \ | \ | 117 | 120 | 148 | 148 | 202 | 202 | 263 | 263 | 293 |
| H | \ | \ | 76 | 84 | 100 | 105 | 116 | 124 | 168 | 177 | 200 |
| MATERIAL LIST | ||||||||||
| ITEM | DESCRIPTION | MATERIAL | ||||||||
| 1 | COVER | PLASTIC | ||||||||
| 2 | HANDLE | SUS304 | ||||||||
| 3 | GLAND | SUS304 | ||||||||
| 4 | STEM NUT | SUS304 | ||||||||
| 5 | THRUST WASHER | SUS304 | ||||||||
| 6 | STEM | SUS304 | ||||||||
| 7 | STEM PACKING | PTFE | ||||||||
| 8 | STEM WASHER | PTFE | ||||||||
| 9 | CAP | CF8/CF8M | ||||||||
| 10 | SEAT | RPTFE | ||||||||
| 11 | BOLT | SUS304 | ||||||||
| 12 | BALL | CF8/CF8M | ||||||||
| 13 | BODY | CF8/CF8M | ||||||||
| 14 | NUT | SUS304 | ||||||||
| 15 | THRUST WASHER | SUS304 | ||||||||
